Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Kingbali
  • Model Number: Kingbali Insulation Type
  • Type: Insulation Film
  • Material: Polyimide

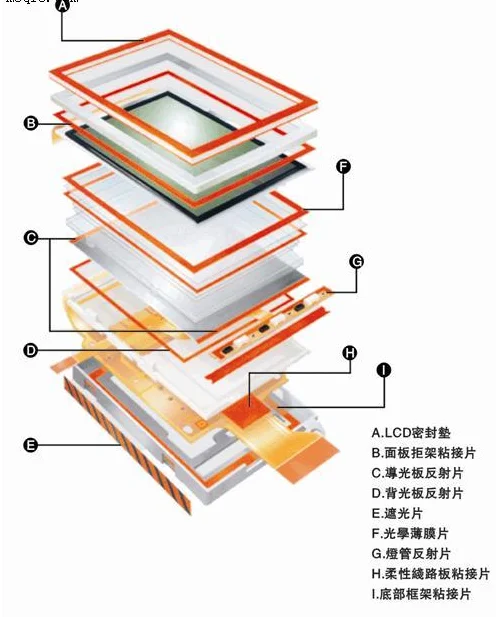

  • Application: High Voltage, Mobile Phone/LCD/Computer
  • Rated Voltage: 100-300KV
  • Tensile Strength: 135Mpa
  • Color: Customized
  • Certification 1: UL 94-VO
  • Certification 2: SGS/RoHs
  • Usage: Insulation Protection
  • Size: Customers Request
  • Sample: Free Sample
  • Certification 3: ISO 9001:2008
  • Die Cut: Customized as your drawing
  • Thickness: 0.04mm/0.05mm/0.1mm

Packaging & Delivery

Packaging Details 1.PET Film Coverd---Protection
2.Use Paper Card To Separate Each Layer.
3.Standard Export Carton
4.Marked With Customer's Information Or Customized
5.QC Department Will Check In Case The Packing Method Isn't Safe Enough.
Delivery Time Shipped in 2 days after payment

China Price Customized Polyimide Film on Mobile Phone

Product Description

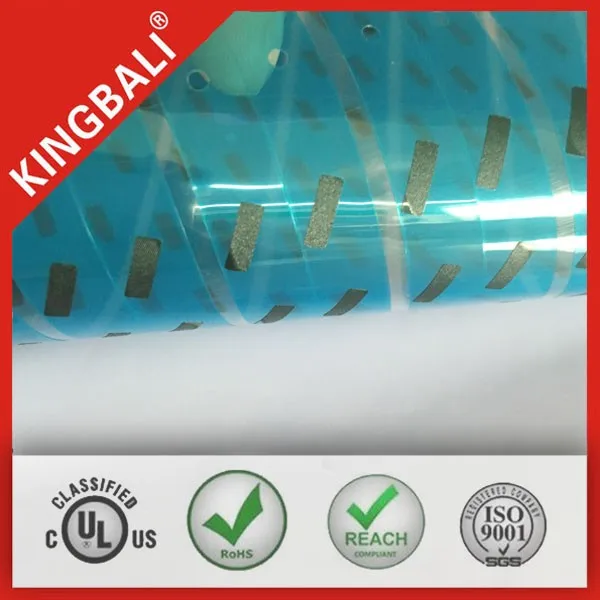

 Die Cut Polyimide Film

  •  Rotary Die Cutting
  •  Flatbed Die Cutting
  •  Steel Rule Die Cutting
  •  Laser Die Cutting
  •  Punch Press

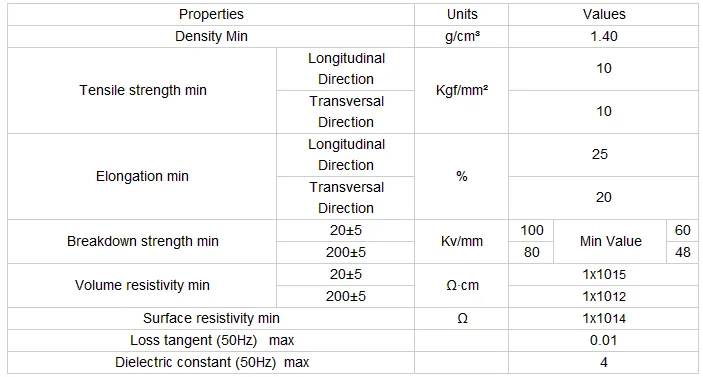

Datasheet

Description

Polyimide film is a good H grade insulating material. It is widely used for insulation purpose in electrical appliances which are used in special environment. To use the polyimide film means reducing volume and weight of the electrical appliances while retaining the same output or increase the capacity without increasing in frame size. It can also prolong the service life of the electrical appliances and increase their reliability. Its long-term working temperature is under 200 °C.


The following properties of Polyimide Film ensure its good performance under extreme temperature or other conditions.

Advantage
1. Good property of insulation and mechanism
2. Good temperature-resistant property, wide performance temperature range. It can be used under temperature from –60 °C to +250 °C for a long period and –269 °C to +400 °C for a short period without changing its electrical and mechanic properties.
3. Good chemical stability. It resists most organic solvents.
4. Excellent flame retardant property
5. Good radian-resistant property
6. Can be combined with many other materials. When combined with fluorine resin, its characters of wet and corrosion resistance are greatly improved.
